Product Description
Specifications
Weight
Core 11 : 2.6 kg / 5lb 12 oz

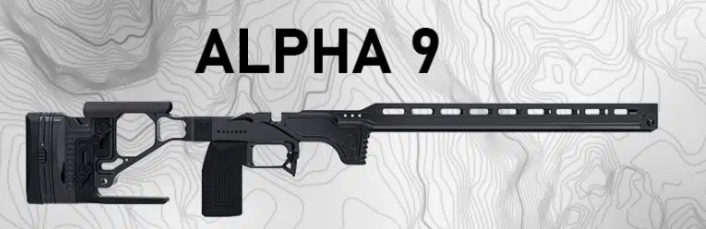

Alpha 9 : 2.45 kg / 5 lb 6 oz
Scout 7 : 2.35 kg / 5 lb 3 oz
Recon 5 : 2.25 kg / 4 lb 15 oz
SBR 3 : 2.05kg / 4 lb 8 oz
(R700SA Inlet + Hardware)
Forend Length
Core 11: 480mm / 18.9”
Alpha 9: 400mm / 15.7”
Scout 7: 320mm / 12.6”
Recon 5: 240mm / 9.4”
SBR 3: 160mm / 6.3”
(Measurement begins within +- 10mm of bolt-face)
Total Length
Core 11: 960mm / 37.8”
Alpha 9: 880mm / 34.65”
Scout 7: 800mm / 31.5”
Recon 5: 720mm / 28.35”
SBR 3: 640mm / 25.2”
(Medium Adapter Block)
Length of Pull
3 Integrated Adjustment levels
311mm / 12.2” – 323mm / 12.7” – 335mm / 13.2”
(Medium Adapter block)
Adapter block sizes:
Short: 7mm | Medium: 23mm |
Long: 30mm |Extra Long: 35mm
Maximum Barrel Diameter
With Top Cover : 1.250” / 31.75mm
Without Top Cover: 1.350” / 34.3mm
*We recommend max 1.250” to ensure sufficient
clearance in all conditions*
Magazine Compatibility
R700 Short Action: AICS, AW & AX
Tikka T3x Short Action: AICS (Metal)
R700 Long Action: AICS 3.850” CIP *
* 3.560”, 3.715” & 4.050” supported via optional
magazine adjustment plates *
Grip Compatibility
Compatible With AR-15 Style Grips.
Materials & Surface Finish
Aircraft-Grade 7075-T6 Aluminum
Black Stainless Steel Screws
Elite Series Cerakote
Small components are Anodized
Length of pull specifications
12.25″ – 14.29″ / 311mm – 363mm (Depending On Adapter Block)
|
Compatibility |
Adapter block |
LOP Adjustment 1 |
LOP Adjustment 2 |
LOP Adjustment 3 |
|
Rem 700 SA |
Short Adapter Block (7mm) |
311mm / 12.24in |
323mm / 12.72in |
335mm / 13.19in |
|
Rem 700 SA |
Medium Adapter block (23mm) |
327mm / 12.87in |
339mm / 13.35in |
351mm / 13.82in |
|
Rem 700 SA Tikka T3 SA Rem 700 LA |
Folding hinge adapter / Long Adapter Block (30mm) |
334mm / 13.15in |
346mm / 13.62in |
358mm / 14.09in |
|
Rem 700 SA Tikka T3 SA Rem 700 LA |
Extra Long adapter block (35mm) |
339mm / 13.22in |
351mm / 13.70in |
363mm / 14.17in |
