Product Description
The brilliant optical performance and a large field-of-view on low power makes the 3-20x50 PM II Ultra Short a perfect riflescope for medium and long-range targets. Although extremely compact, it features a powerful 6.7x zoom which is rugged and lightweight and therefore ideal for compact weapon systems. The low-profile elevation turret with a large 35 MRAD adjustment range can easily be combined with a red dot sight for close distances. This is why it is in use by military, police and competition shooters around the world.
| Weight (g) | 920 - 980 |
| Lengh (mm) | 340 |
| Tube diameter (mm) | 34 |
| Magnification | 3-20x |
| Objective lens diameter (mm) | 50 |
| Field of view (m) | 13.0 - 2.1 |
| Exit pupil (mm) | 11.4 - 2.5 |
| Eye relief distance (mm) | 90 |
| Twilight factor | 12.2 - 31.6 |
| Transmission | 90 |
| Focal plane | 1. & 2. |
| Diopter | -3 to +2 |
| Parallax adjustment | 25 - ∞ |
| Illumination | 11 settings |
| Adjustment | DT27 MTC LT / ST ZC CT |
| Adjustment value / Click | 1 cm |
| Elevation (Turret) | 270 cm/100 m |
| Windage (Turret) | ±60 cm/100 m |
| Adjustment | DT35 MTC LT / ST ZC CT |
| Adjustment value / Click | 1 cm |
| Elevation (Turret) | 350 cm/100 m |
| Windage (Turret) | ±60 cm/100 m |
| Adjustment | DT II+ MTC LT / ST II ZC LT |
| Adjustment value / Click | 1 cm |
| Elevation (Turret) | 305 cm/100 m |
| Windage (Turret) | ±60 cm/100 m |
| Adjustment | MT II MTC LT / DT II+ ZC LT |
| Adjustment value / Click | 0.5 cm/100 m |
| Elevation (Turret) | 395 cm/100 m |
| Windage (Turret) | 65 cm/100 m |
| Waterproof (m) | 3 m (25 m on request) |
| Temperature range | |
| Storage | -55 to 70 °C |
| Function | -46 to 60 °C |
| Turret Types | cw/ccw |
| Colors | Black, RAL 8000 |

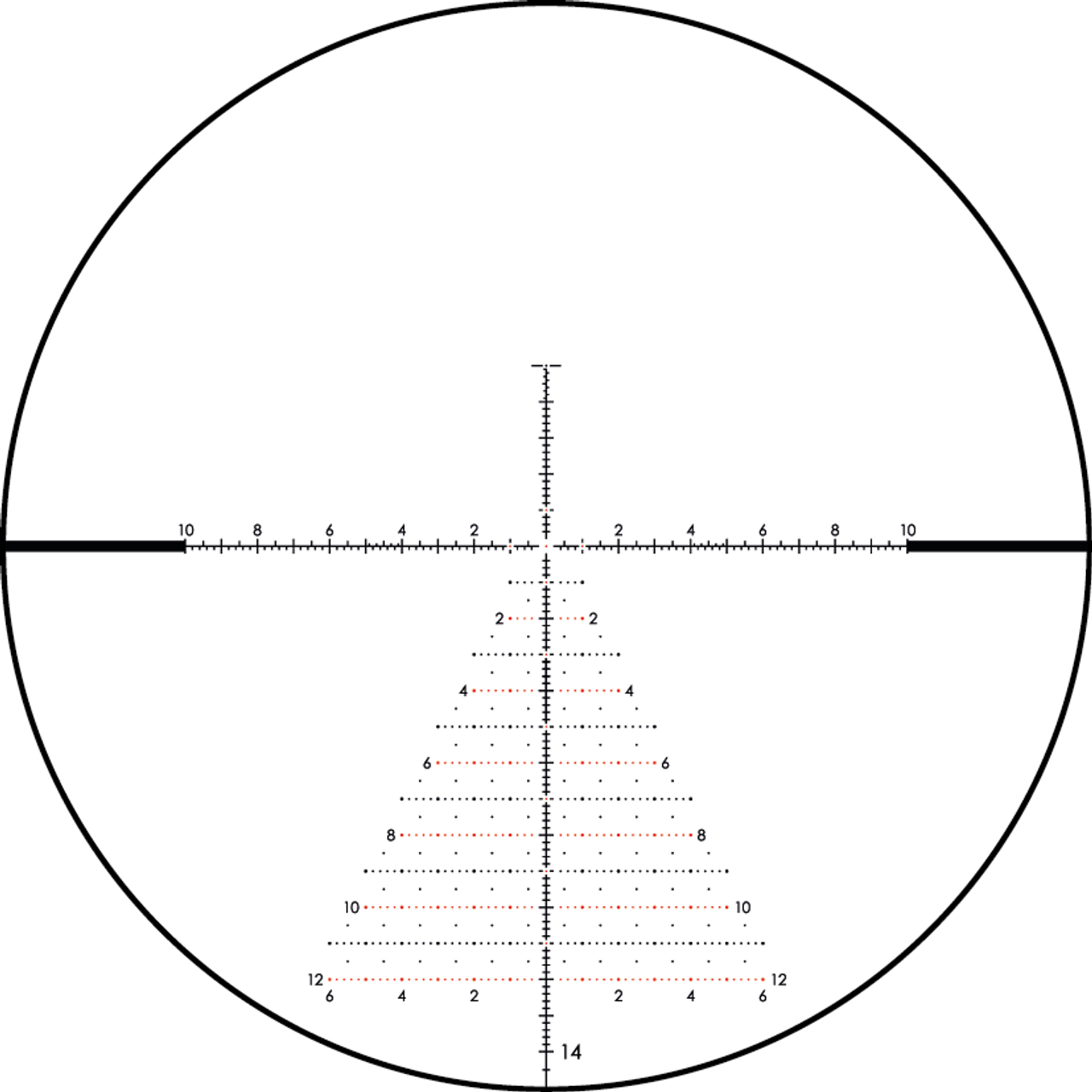

| Reticles | P4FL (FFP), PF4L-MOA (FFP) – (On request), MDR (FFP) – (On request), MSR2 (FFP), GR²ID (FFP), H59 (FFP) – (On request), Tremor3 (FFP), P4FL (SFP) – (On request) |
cw = clock wise
ccw = counter clock wise
