Product Description
The Schmidt & Bender 5–25×56 PM II LP P5FL (1cm CW DT27 MTC LT / ST ZC LT, RAL 9010) is a precision-engineered riflescope built for professional military, law enforcement, and competition marksmen. With a broad magnification range from 5× to 25×, it delivers outstanding optical clarity and flexibility for both mid- and long-range shooting scenarios. The high-performance 56mm objective lens and excellent 90% light transmission ensure superior brightness, even in low-light conditions. The scope features the advanced P5FL reticle in the first focal plane, allowing consistent subtensions across all magnifications. Illumination with 11 brightness settings ensures reticle visibility in any light. Its DT27 double-turn elevation turret and ST ZC capped windage turret offer tactile, repeatable adjustments in 0.1mrad increments. The rugged 34mm tube is coated in RAL 9010 matte white, offering both style and durability. Parallax can be finely adjusted from 10 meters to infinity using a side knob, enhancing precision across varied distances. This scope is ideal for those demanding maximum optical performance, extreme mechanical precision, and battlefield-proven reliability.
- 5–25× magnification range for versatile targeting
- 56mm objective with 90% light transmission

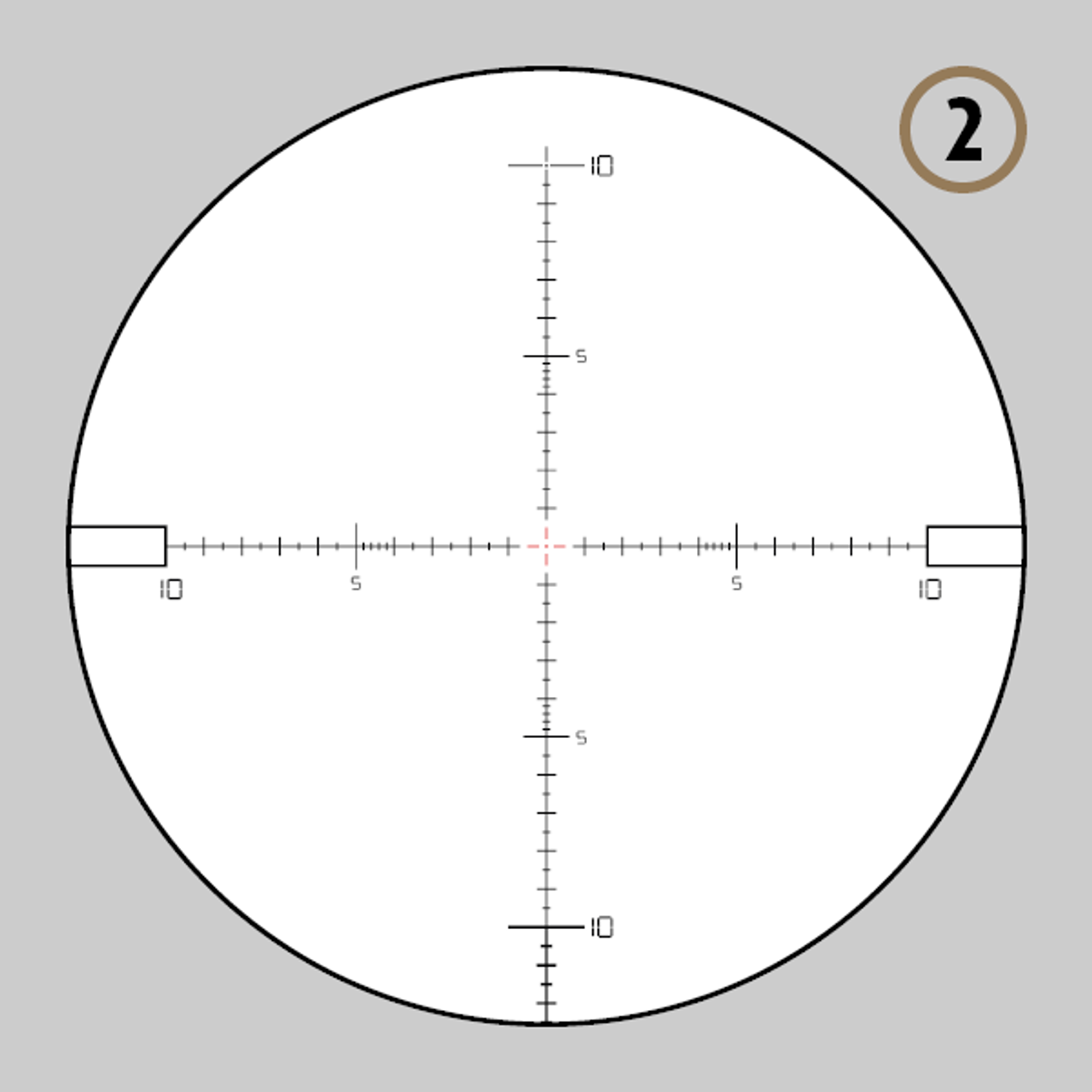

- First focal plane P5FL illuminated reticle (11 brightness levels)
- 0.1mrad click adjustments with DT27 elevation and ST ZC windage turrets
- Parallax adjustment from 10m to infinity
- 34mm tube for added strength and adjustment range
- Rugged RAL 9010 matte white finish
- 90mm eye relief and exit pupil range of 11–2.3mm
- Weighs 1,065g and measures 420mm in length
Specifications
SKU
689-910-622-G9-E9-SB
UPC
191992070239
MPN
689-910-622-G9-E9
Exit Pupil
11.0 – 2.3 mm
Eye Relief
90 mm
Field of View
5.3 – 1.5 m @100 m
Illuminated Reticle
Yes
Light Transmission
90%
Magnification Range
5–25×
Parallax Adjustment
10m to infinity
Reticle Position
First Focal Plane
Elevation Turret Details
DT27 MTC LT: 27 mrad total, double-turn, locking, tactile clicks every 10 clicks; CW
Scope Finish
RAL9010 (White)
Scope Length
16.54 in
Scope Objective Diameter
56 mm
Reticle Details
P5FL - precision MIL-based FFP reticle, 11 illumination levels
Scope Tube Size / Mount
34 mm
Turret Adjustment (Click Value)
0.1 mrad (1 cm @ 100 m) per click
Scope Weight
37.57oz
Windage Turret Details
ST ZC CT — ±6 mrad (single-turn, zero-click; locking)
Sport Type
Tactical & Military
Item Condition
New
Product Type
Riflescopes
